Portable metal laser engraving machine 20w fiber laser marking machine stainless steel laser engraving machine
Feature:
1. Widely used for marking metal and nonmetal materials
2. High speed (7000mm/s), high precision (0.001mm)
3. Air cooling, no requirement to temperature
4. Double red dot focus system, easy to operate
5. Long lifetime (100000 working hours), no consumable
Parameter:
| Model | YLP-HB20 |
| Laser power | 10W 20W 30W 50W |
| Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| Beam quality | m2 <2 |
| Power stability | (8h) <± 1% rms |
| Pulse repetition frequency | 20KHZ ---- 100KHZ |
| Power consumed | <800W |
| Minimum line width | 50μm |
| Minimum character | 0.3mm |
| Laser Wavelength | 1064nm |
| Galvanometer Size | 110 * 110mm (optional) |
| Whole machine power | 500w |
| Cooling way | Air cooling |
| Operating voltage | 110/220V ± 10% /,50/60HZ |
| Ambient operating temperature | 15 ° C - 35 ° C |
| Weight | 80KG |
| Dimensions | 600H * 200W * 700L (mm) |
| Packing | plywood wooden packaging |

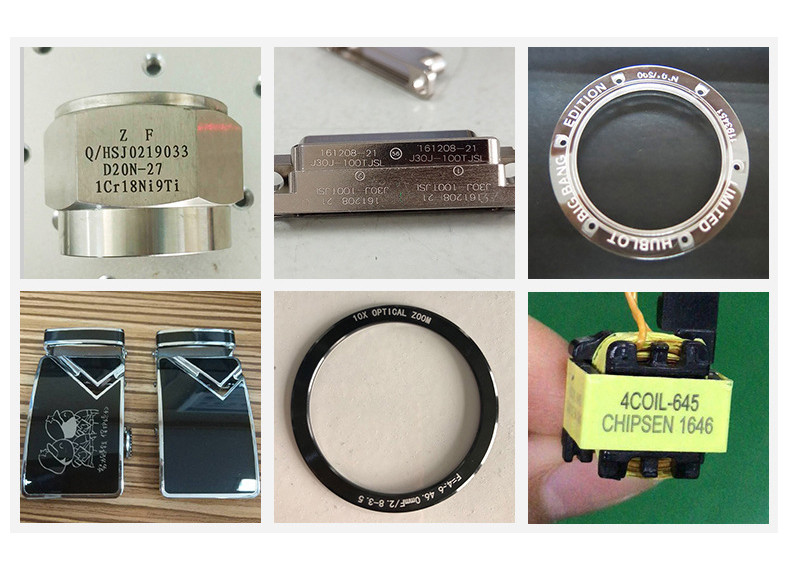

Applicable Industries:
1. It is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys,
2. electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware,
3. tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils,
4. stainless steel products, etc.
5. Electrical Engineering and Electrical part and component
6. Mobile (Cover,battery,keyboard, I Phone Case)
7. Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
8. Building materials,PVC pipe
9. Car motor car spare part ,Insturment and meters and cutting tool
plastic case,aviation and aerospace,
10. military product,hardware fitting and accessory,sanitary appliance
11. food and beverage ,Medicine package and medical instrument,solar Pv industry
Product Tags:
|
|
20W Fiber Laser Marking Machine , Stainless Steel Laser Engraving Machine Images
|
